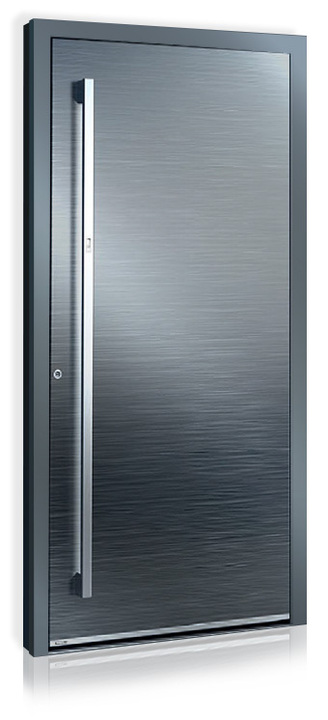

Standard Equipment for 36”x80” slab in white color

Available configurations: Single, Double, with Sidelights and Transom

Single slab up to 45" WIDE x 118" HIGH

U-value 0.177 (0.67 W/m2K) with 3 - sealing system
R-Value = 5.65

Door slab thickness 3-1/2" with triple glazing and extended thermal insulating zone

Safety rosette cylinder inox matt outside

Safety profile cylinder art. 6400 with freewheel function and 5 keys

VK3 3-point inox safety lock with two massive hooks and adjustable thin plate

Inox handle art. 6039 with cylinder rosette art. 6007 inside

Colour white RA L 9016 matt or glossy

Three EV1 door hinges Schuco ADS HD

Door Sizes

	Standard	Oversize	Oversize Grande A	Oversize Grande B
Width	39-3/8" - 45-1/4" (1000-1150mm)	49-1/4 (1250mm)	51-3/16" (1300mm)	51-3/16" (1300mm)
Height	78-3/4"- 86-5/8" (2000-2200mm)	94-1/2" (2400mm)	102-3/8" (2600mm)	118-1/8" ( 3000mm)
Requirements	3 hinges, 3-point locking system	3 hinges, 3-point locking system, > 92-1/8 reqire 4-point locking system	4 hinges, 4-point locking system	5 hinges, 5 point locking system
